Laboratory Washer Laboratory glassware washer with conductivity monitoring EcoDry function
Model: Aurora-2
Laboratory glassware washer with EcoDry function
￭Double level, fit to injection and non injection
Pipettes per cycle [number] 238
￭Efficient use of resource -variable speed heater pump
￭Safety through monitoring – wash pressure and spray arm monitoring
￭Convenient drying support – EcoDry
-

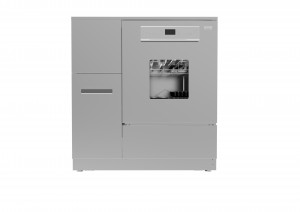

Lab Washer Laboratory Dishwasher Laboratory washer with liquid dispensing hot air drying function
Model: Aruora-F2
Laboratory glassware washer with hot air drying function
￭Double level, fit to injection and non injection Laboratory flasks per cycle [number] 144
￭Efficient use of resource -variable speed heater pump
￭Safety through monitoring – wash pressure and spray arm monitoring
￭Efficient hot air drying
-
Large Capacity CE Certified Laboratory Glassware Washer with Drying
Product Description
Three levels glassware washer with Modular basket design
Product Description
Product Description:
Aurora-F2laboratory glassware washer,can be installed under the laboratory table-board or separately. It can be connected with tap water & pure water. The standard process is to use tap water & detergent to do mainly wash, then use Pure water rinsing. It will bring you a convenient and fast cleaning effect, when you have drying requirements for cleaned utensils, please choose Aurora-F2.
Specification:
Dimension (H*W*D) 995*930*765mm Number of cleaning layers 2 layers Chamber volume 198L Circulation pump flow rate 0-600L/min adjustabie Heating Power 4kw/9kw Basket identification system Standard Installation method Free stading Washing capacity (For example) 25ml Volumetric flask 144 seats 100ml Volumetric flask 84 seats Sample vials 476 seats Pipettes vials 476 seats Petri dishes 168 seats Packaging&Delivery
Packaging&Delivery
Packaging Details Wooden Package Port Shanghai,China Automatic Glassware Washer
Features:
1. Can be standardized for cleaning to ensure uniform cleaning results and reduce uncertainties in human operation.
2. Easy to verify and save records for easy traceability management.
3. Reduce staff risk and avoid injury or infection during manual cleaning.
4. Cleaning, disinfection, drying and automatic completion, reducing equipment and labor input, saving costs
——-Normal washing procedure
Pre-washing → washing with Alkaline detergent under 80°C → rinse with Acid detergent →rinse with tap water → rinse with pure water→rinse with pure water under 75°C→drying
Technological Innovations: Modular basket design
It is divided into upper and lower cleaning baskets. Each layer of the basket is divided into two (left and right )modules. The module is arranged with automatic closing mechanical valve device. It can also be placed on any layer without changing the basket structure.
Importance:
1: More extensive cleaning, can wash more varieties of glasswares
2: There are four seats at the same time in the upper and lower layers, and four modules can be placed at the same time
3: Free combination according different bottles.
4: Cleaning costs decrease
5: Each layer (upper or lower) can be cleaned separately, especially the lower layer, which can be cleaned directly after placing the moduleEfficient drying
1.In situ drying system
2. Built-in HEPA high efficiency filter to ensure the cleanliness of dry air;
3. Synchronize the drying water circulation pipeline to avoid the pipeline contamination of the cleaning system;
4. Double temperature control to ensure drying temperature;Operation management
1.Wash Start delay function: The instrument comes with appointment time start & timer start function to improve the customer’s work efficiency;2. OLED module color display, self-illumination, high contrast, no viewing angle limitation
4.3 level password management, which can meet the use of different management rights;
5. Equipment fault self-diagnosis and sound, text prompts;
6. Cleaning data automatic storage function (optional);
7.USB cleaning data export function (optional);
8. Micro printer data printing function (optional)
Automatic glassware washer—principle
The main principle of the lab glassware washer is to heat the water and add a special cleaning agent into the professional basket frame pipe through the circulating pump to wash the inner surface of the bottles. At the same time, there are also upper and lower spray arms in the cleaning chamber, which can clean the surrounding surfaces of the utensils.
For different shape of glasswares, it can be placed on different support baskets to ensure better spraying method, spray pressure, spray angle and distance; For different industry applications, can set different cleaning procedures, including different cleaning steps, different cleaning agent composition and concentration, different cleaning water quality, different cleaning temperatures.
